WARNING LIGHTS

  • 1
  • 2
  • 3
  • 4
  • 5

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

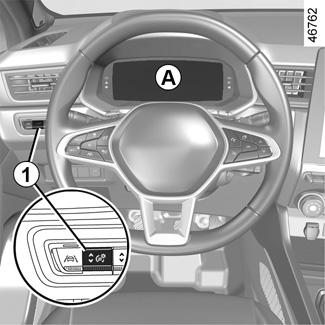

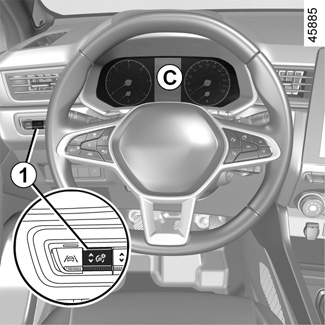

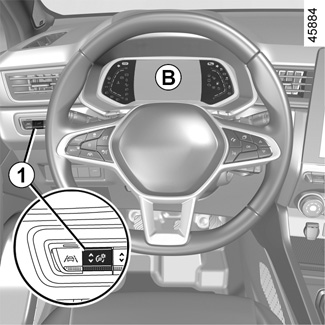

Instrument panel AB or C : it illuminates when the ignition is switched on. Press or lift the 1 switch as many times as required to adjust the intensity.

In some cases, the appearance of a warning light is accompanied by a message on the instrument panel.

Warning light © means you should drive very carefully to an authorised dealer as soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

For your safety, the warning light ® requires you to stop immediately as soon as traffic conditions allow. Switch off the engine and do not restart it. Call an approved Dealer.

If no lights or sounds are apparent, this indicates a fault in the instrument panel. This indicates that it is essential to stop immediately (as soon as traffic conditions allow). Ensure that the vehicle is correctly immobilised and contact an approved Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

š Side light warning light

á Main beam headlight tell-tale

k Dipped beam headlight tell-tale

Rear fog lights tell-tale

Automatic main beam headlight indicator light EXTERIOR LIGHTING AND SIGNALS

Left-hand direction indicator tell-tale

˜ Right-hand direction indicator tell-tale light

å Indicator lightairbag

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it does not come on when the ignition is switched on, or comes on when the engine is running, there is a fault in the system.

Contact your approved Dealer as soon as possible.

® STOP light

This lights up when the ignition or engine is switched on and goes out as soon as the engine is running. It comes on with other warning lights and/or messages, and is accompanied by a beep.

It requires you to stop immediately, for your own safety, as soon as traffic conditions allow. Switch off the engine and do not restart it.

Contact an approved Dealer.

D Brake circuit fault warning light

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it comes on during braking and is accompanied by the ® warning light and a beep, it indicates that the fluid level in the circuit is low or that there is a braking system fault.

Stop as soon as traffic conditions allow and consult an approved dealer.

Ú Battery charge warning light

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it comes on on the road, accompanied by the ® warning light and a beep, this indicates an overload or discharge in the electrical circuit.

Stop as soon as traffic conditions allow and contact an approved Dealer.

À Oil pressure warning light

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it comes on on the road, accompanied by the ® warning light and a beep, stop immediately and cut the ignition.

Check the oil level. If the level is normal, the warning light is related to something else.

Call an approved Dealer.

U Variable power-assisted steering warning light

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it comes on while driving, alongside the warning light ®, this means there is a system fault.

Contact an authorised dealer.

AUTOHOLD” system warning “AUTOHOLD” FUNCTION

© Warning light

This lights up when the ignition or engine is switched on and goes out as soon as the engine is running. It can light up in conjunction with other warning lights and/or messages on the instrument panel. It means you should drive very care- fully to an approved Dealer as soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

Warning light

If it appears in red during driving and is accompanied by the ® indicator light, you must, for your safety, stop as soon as traffic conditions allow. Switch off the engine and do not restart it. Call an approved Dealer. If it appears in yellow during driving and is accompanied by the © warning light, visit an approved dealer as soon as possible. Meanwhile, drive with care.

If you fail to follow this recommendation, you risk damaging your vehicle.

} Handbrake “on” and electronic parking brake warning light GEAR LEVER, HANDBRAKE ELECTRONIC PARKING BRAKE

 Gear change indicators

This lights up to advise you to change to a higher gear (arrow pointing upwards) or lower gear (arrow pointing downwards) DRIVING ADVICE, ECO DRIVING.

Warning light for the electronic stability program (ESC) and traction control system

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

There are several reasons for the warning light to appear: DRIVING CORRECTION DEVICES AND AIDS.

Warning light for non-availability of the electronic stability program (ESC) and traction control system

Door status warning light

x Anti-lock braking warning light

It lights up when the ignition or the engine is switched on and goes off after a few seconds.

If it lights up when you are driving, it indicates a fault in the anti-lock braking system.

Braking will then be as normal, without the ABS. Contact an approved Dealer as soon as possible.

Particle filter system warning light SPECIAL FEATURES OF PETROL VERSIONS SPECIAL FEATURES OF DIESEL VERSIONS: particle filter

Warning light for reagent level and faults in the exhaust gas reduction system REAGENT TANK

Tyre pressure loss warning TYRE PRESSURE LOSS WARNING

É Preheating warning light (Diesel version)

This should come on when the ignition is switched on. It indicates that the heater plugs are in operation.

It goes out when preheating is complete. The engine can be started.

Ä Toxic Fume Filter System Warning Light

On vehicles that are equipped, this light comes on when the engine is started and, depending on the vehicle, when the ignition is switched off while the engine is in the standby phase STOP AND START FUNCTION then it goes out.

- If it lights up continuously, consult your approved dealer as soon as possible;

- If it flashes, reduce the engine speed until the light stops flashing. Contact your approved Dealer as soon as possible MAINTENANCE AND ANTIPOLLUTION ADVICE.

L Low fuel level warning light

It lights up orange when the ignition or the engine is switched on and goes off after a few seconds.

If the light becomes orange while driving and a beep sounds, fill up with fuel as soon as possible. There is only approximately 31 miles (50 km) worth of fuel left.

Mode warning light ECO

It comes on when ECO mode is active DRIVING ADVICE, ECO DRIVING.

Freewheel indicator light

DRIVING ADVICE, ECO DRIVING

Ô Coolant temperature warning light

This lights up blue when you switch on the ignition or start the engine.

If it turns red, stop and let the engine idle for a minute or two.

The temperature should lower and the warning light should return to a blue colour. If not, stop the engine. Let the engine cool down before checking the coolant.

Contact an approved Dealer.

Ð Speed limiter warning light SPEED LIMITER

Ï Cruise control warning light CRUISE CONTROL

Adaptive cruise control warning light Stop and Go ADAPTIVE CRUISE CONTROL

Engine standby warning light STOP AND START FUNCTION

Unavailability of engine standby warning light STOP AND START FUNCTION

Ó Brake pedal warning light

This lights up when the brake pedal should be depressed AUTOMATIC GEARBOX, ELECTRONIC LEVER.

Assisted parking brake fault light ASSISTED PARKING

Overspeed warning light DISPLAYS AND INDICATORS

Lane departure system warning light LANE DEPARTURE WARNING

Lane Keeping Assist system warning light LANE KEEPING ASSIST

 (Depending on vehicle) Indicator of failure or unavailability of active emergency braking ACTIVE EMERGENCY BRAKING

“Hands off steering wheel” detection warning light LANE KEEPING ASSIST

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

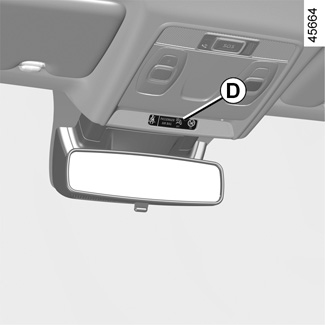

On display D

Passenger Airbag ON CHILD SAFETY: deactivating, activating airbag front passenger

¹ Passenger Airbag OFF CHILD SAFETY: deactivating, activating airbag front passenger

ß Seat belt reminder warning lights SEAT BELTS
