DISPLAYS AND INDICATORS

  • 1
  • 2
  • 3
  • 4
  • 5

Engine oil level low warning

When the engine is started, the instrument panel display alerts you if the minimum oil level is reached. ENGINE OIL LEVEL: general information.

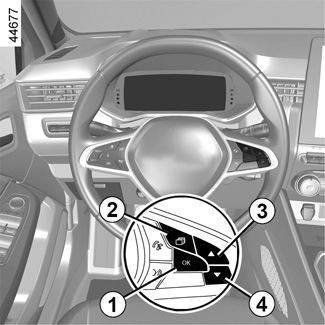

The first time the warning appears, it can be cleared by pressing 1 "OK ".

Subsequent warnings will disappear automatically after around 30 seconds.

Instrument panel in miles

(option to switch to km/h)

Vehicles not fitted with a multimedia screen

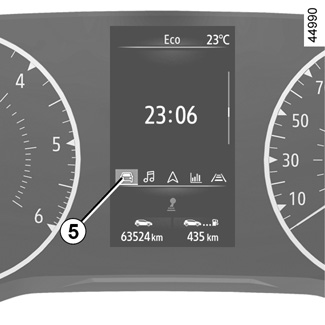

- With the ignition off, press the 2 switch as many times as required to reach the vehicle tab 5;

- press the 3 or 4 control repeatedly to access “Settings”, then press 1 “OK”;

- repeat the same operation to access "DASHBOARD", then "Units".

Vehicles fitted with a multimedia screen.

Please see the multimedia instructions for information on how to select the unit.

Note: in both cases, once the battery is switched off, the on-board computer automatically returns to the original unit of measurement.

To return to the previous mode, repeat the same operation.

Please refer to the multimedia instructions for more information.

Instrument panel A

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with the content and colours of your choice.

For vehicles fitted with a multimedia screen, refer to the equipment instructions.

For vehicles not fitted with a multimedia screen VEHICLE SETTINGS CUSTOMISATION MENU.

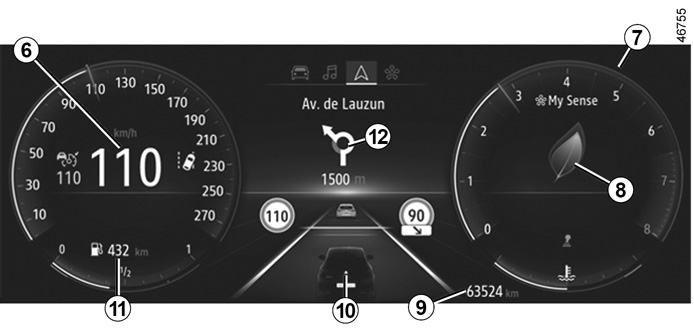

Speedometer 6

Depending on the style selected, the display varies.

Rev counter 7

(graduations x 1000)

This is displayed differently according to how the instrument panel is customised. Depending on the style selected, it may not be displayed.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This beep sounds as soon as the vehicle is travelling at over 75 mph (120 km/h). This warning light remains lit for as long as the vehicle is travelling at over 74 mph (120 km/h).

Driving style indicator 8 DRIVING ADVICE, ECO DRIVING

Total mileage recorder 9 TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Trip computer 10 TRIP COMPUTER: general information

Estimated mileage with remaining fuel 11

The value is displayed after driving 400 metres. TRIP COMPUTER AND WARNING SYSTEM: journey parameters.

Multimedia information 12

Depending on the vehicle, you can display information from the multimedia screen (the compass, telephone, navigation, etc.).

Please refer to the multimedia instructions for more information.

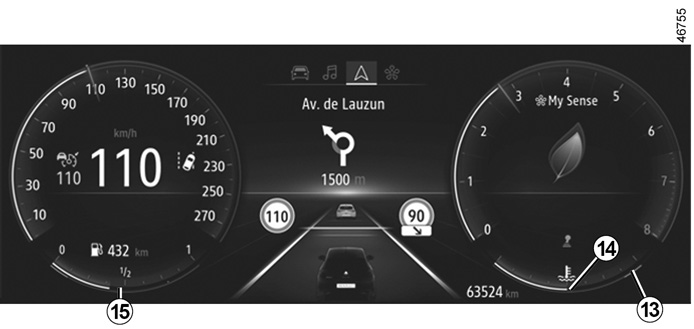

Coolant temperature indicator 14

In normal use, indicator 14 should be before area 13. Under "intensive" operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

Fuel gauge 15

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

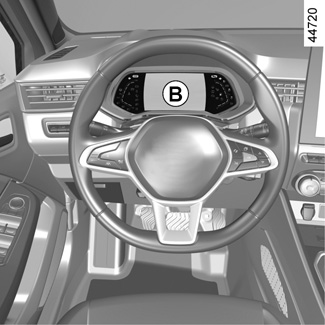

Instrument panel B

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with the content and colours of your choice.

For vehicles fitted with a multimedia screen, refer to the equipment instructions.

For vehicles not fitted with a multimedia screen VEHICLE SETTINGS CUSTOMISATION MENU.

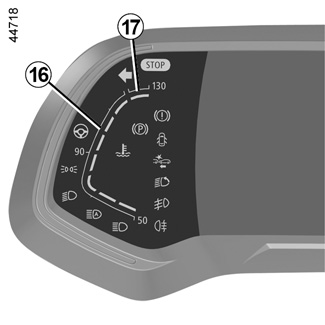

Coolant temperature indicator 16

In normal use, indicator 16 should be before area 17. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

Speedometer 18

Depending on the style selected, the display varies.

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This sounds as soon as the vehicle exceeds 74 mph (120 km/h). The warning light remains on as long as the vehicle speed is over 74 mph (120 km/h).

Rev counter 19

(graduations x 1000)

This is displayed differently according to how the instrument panel is customised. Depending on the style selected, it may not be displayed.

Driving style indicator 20 DRIVING ADVICE, ECO DRIVING.

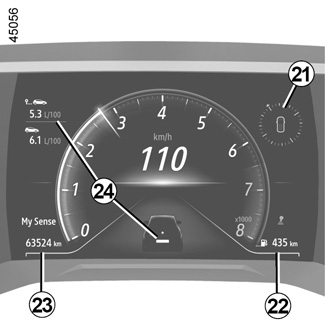

Multimedia information 21

Depending on the vehicle, you can display information from the multimedia screen (the compass, telephone, navigation, etc.).

Please refer to the multimedia instructions for more information.

Estimated mileage with remaining fuel 22

The value is displayed after driving 400 metres. TRIP COMPUTER AND WARNING SYSTEM: journey parameters.

Total mileage recorder 23 TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Trip computer 24 TRIP COMPUTER: general information

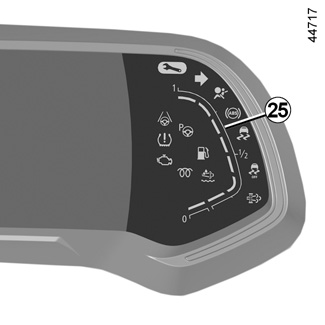

Fuel gauge 25

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.

Instrument panel C

It lights up when the ignition is switched on. In some cases, the appearance of a warning light is accompanied by a message.

Depending on the vehicle, you can customise your instrument panel with colours of your choice.

For vehicles fitted with a navigation system, refer to the handbook for the equipment.

For vehicle not fitted with a navigation system VEHICLE SETTINGS CUSTOMISATION MENU.

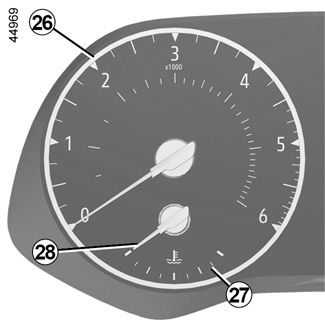

Rev counter 26

(graduations x 1000)

Coolant temperature indicator 28

In normal use, the indicator 28 should be before the red zone 27. Under “intensive” operating conditions, the needle may approach this zone. This is not serious unless the warning light ® comes on accompanied by a message on the instrument panel and a beep.

Trip computer 29

TRIP COMPUTER: general information

Estimated mileage with remaining fuel 30

The value is displayed after driving 400 metres.

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Total mileage recorder 31

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

Driving style indicator 32 DRIVING ADVICE, ECO DRIVING

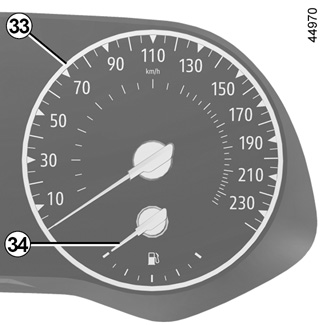

Speedometer 33

Overspeed buzzer

Depending on the vehicle and country, the warning light is displayed and a beep sounds. This sounds as soon as the vehicle exceeds 74 mph (120 km/h). The warning light remains on as long as the vehicle speed is over 74 mph (120 km/h).

Fuel gauge 34

If the level is at the minimum, warning light M integrated in the indicator comes on orange, accompanied by a beep. Fill up as soon as possible.
