TYRE PRESSURE LOSS WARNING

  • 1
  • 2
  • 3
  • 4
  • 5

When fitted to the vehicle, this system notifies the driver if one or more tyres lose pressure.

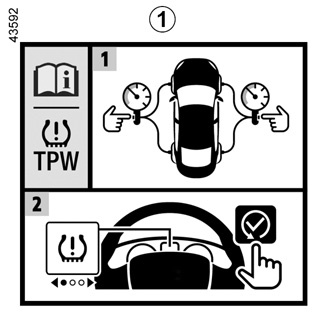

The system is fitted if there is a 1 label in the vehicle.

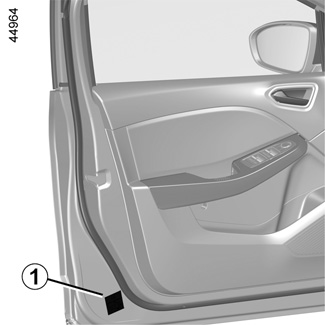

To verify its presence, open the driver’s door.

Operating principle

This system detects a loss of pressure in one of the tyres by measuring the wheel speed while driving.

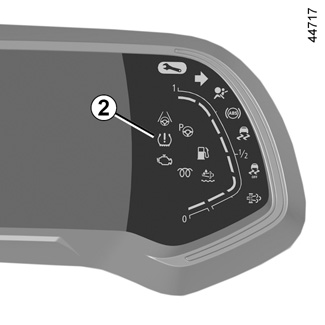

Warning light  2 comes on to alert the driver in the event of insufficient pressure (deflated wheel, punctured tyre, etc.).

Operating conditions

The system has to be reset with an inflation pressure equal to that written on the tyre inflation pressure label. Otherwise it risks not giving a reliable warning in the event of a significant loss of pressure. TYRE PRESSURE.

In the following situations, the system risk coming into action late or not functioning correctly:

- system not reset after reinflation or any operation on the wheels;

- system badly reset: different inflation pressures from the recommended pressures;

- significant change in load or distribution of load on one side of the vehicle;

- sporty driving with strong acceleration;

- driving on snowy or slippery surface;

- driving with snow chains;

- fitting a single new tyre;

- use of tyres not approved by the network;

-...

This function is an additional driving aid.

The function does not take the place of the driver. It cannot, therefore, under any circumstances replace the vigilance or the responsibility of the driver.

Check the tyre pressures, including the emergency spare wheel, once a month.

Resetting the standard level for the tyre pressures

It must be carried out with the vehicle stopped:

- after each reinflation or readjustment of the pressure of one of the tyres;

- when the standard tyre pressure needs to be changed to adapt to usage conditions (empty, carrying a load, motorway driving, etc.);

- after changing a wheel;

- after using the tyre inflation kit;

- after swapping a wheel (however, this practice is not recommended).

It should always be done after checking the tyre pressure of all four tyres when cold.

Tyre pressures must correspond to the current usage of the vehicle (empty, carrying a load, motorway driving, etc.).

Resetting procedure

Ignition on, vehicle stopped:

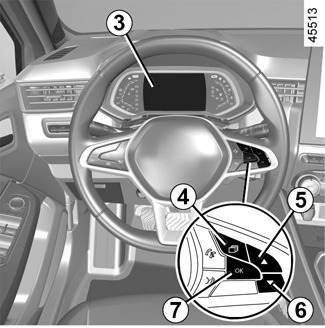

- briefly press the 4 switch as many times as required to reach the “Vehicle” tab (or, depending on the vehicle, the Information page);

- briefly press the 5 or 6 switch to access the tyre pressures reset page;

- press and hold the 7 OK switch to launch the reset.

The display of the message “If pressure OK [hold on]” for around five seconds indicates that the reset request for the tyre pressure reference value has been taken into account.

Reinitialisation is carried out after a few minutes’ driving. The “Operation completed” message indicates that the tyre pressure reference value has been reset.

Display

The display 3 on the instrument panel informs you of any tyre pressure faults (flat tyre, punctured tyre, etc.).

“Check tyre press and init.”

Warning light comes on, along with the message “Check tyre press and init.”. They indicate that at least one tyre is flat or punctured.

In the event of a flat tyre, inflate the relevant tyre.

In the event of a puncture, change the tyre or consult an authorised dealer.

Check and readjust the pressure of the four tyres when cold, and launch the reset of the tyre pressure reference value.

Warning light goes out after launching the reinitialisation of the tyre pressure reference value.

The sudden loss of pressure in a tyre (burst tyre, etc.) cannot be detected by the system.

“Check tyre press and init.(continued)

The warning light flashes for several seconds, then stays on, along with the message “Check tyre press and init.”.

They indicate that the request to reset the reference value of the tyre pressures must be restarted.

“TPW not available

The warning light flashes for several seconds, then stays on, along with the message “TPW not available”.

They indicate that the vehicle is equipped with an emergency spare wheel which is smaller than the other four and that it is fitted to the vehicle.

“Check TPW

The warning light flashes for several seconds, then stays on, along with the message “Check TPW”.

This message is accompanied by the warning light ©.

They indicate a system fault. Please consult an authorised dealer.

Readjustment of tyre pressures

The tyre pressures must be adjusted when cold (please refer to the label located on the edge of the driver’s door).

If tyre pressures cannot be checked when the tyres are cold, the recommended pressures should be increased by 0.2 to 0.3 bar (3 PSI).

Never deflate a hot tyre.

After each reinflation or readjustment of the tyre pressure, launch the reinitialisation of the tyre pressure reference value.

Replacing wheels/tyres

Only use equipment approved by the network, otherwise the system risks late activation or incorrect operation. TYRES.

After each change of wheel/tyre, readjust the tyre pressure and launch the reset of the tyre pressure reference value.

Emergency spare wheel

If fitted on the vehicle, readjust the tyre pressure and launch the reinitialisation of the tyre pressure reference value.

Tyre repair product and inflation kit

Only use equipment approved by the network, otherwise the system risks late activation or incorrect operation. TYRE PRESSURE KIT.

After using the tyre inflation kit, readjust the tyre pressure and launch the reinitialisation of the tyre pressure reference value.
