TANK

  • 1
  • 2
  • 3
  • 4
  • 5

Useable tank capacity:

- Approximately 9.24 gallons (42 litres) for petrol versions;

- Approximately 8.58 gallons (39 litres) for diesel versions.

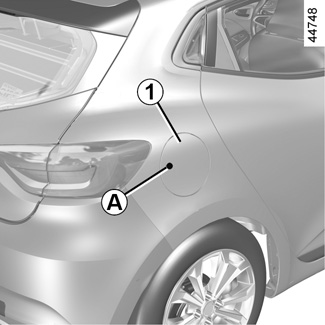

With the vehicle unlocked, to open cover 1, press area A then release. The cover 1 opens.

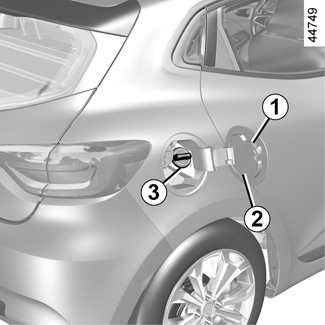

Use the cap holder 2 on the flap 1 during filling to hold the cap 3 in place.

For details on filling the fuel tank, refer to the section on “Filling with fuel”.

To close it, press on the fuel filler flap by hand, as far as it will go.

Filler cap: this is specific.

If you have to replace it, make sure it is identical to the original cap. Contact an approved Dealer.

Never place the cap near a source of heat or flame.

Do not wash the filler area with a high-pressure washer.

Fuel grade

Use a high-grade fuel that complies with the legislation in force in each country and which must comply with the specifications given on the label on the cover 1. ENGINE SPECIFICATIONS.

After filling, check that the cap and cover are closed.

Do not mix even small amounts of petrol (unleaded or E85) with diesel.

Do not use ethanol-based fuel if your vehicle is not compatible with this fuel.

Do not add additive to the fuel (additive, reagent, etc.), you could damage the engine. If you wish to add an additive to the fuel, use a product approved by our Technical Department.

Consult an approved dealer.

Diesel version

It is essential to use diesel fuel that conforms with the information given on the label inside cover 1.

Petrol version

It is essential to use unleaded petrol. The octane rating (RON) must comply with the information given on the label on the cover 1. ENGINE SPECIFICATIONS.

Filling with fuel

With the ignition off, insert the nozzle and insert it fully before turning it on to fill the fuel tank (risk of splashing).

Keep the nozzle in this position throughout the entire filling operation.

When the pump cuts out automatically at the end of the filling procedure, a maximum of two further filling attempts may be made, as there must be sufficient space in the fuel tank to allow for expansion.

Make sure that no water enters the fuel tank during filling. The cover 1 and its surround must remain clean.

Special case

When the vehicle has been stopped for around three months, you must add fuel to prevent damage to the fuel pump.

To do this, with the ignition off, top-up at least 1.10 gallons (5 litres) then start the engine to operate the pump and renew the fuel in the circuit.

If it is not possible to add at least 1.10 gallons (5 litres) of fuel due to the fuel level in the tank, drive the vehicle until the tank has capacity.

Petrol versions

Using leaded petrol will damage the antipollution system and may lead to a loss of warranty.

To ensure that the tank is not filled with leaded petrol, the fuel tank filler neck consists of a restrictor fitted with a safety system which only allows a nozzle for unleaded petrol to be used (at the pump).

Fuel types that conform to European standards with which the engines of vehicles sold in Europe are compatible: refer to the table ENGINE SPECIFICATIONS.

Vehicle fitted with the Stop and Start function

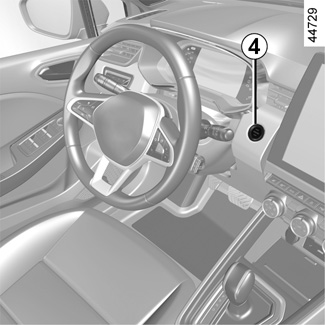

To fill up with fuel, the engine must be stopped (and not in standby): stop the engine by pressing the engine stop button 4 STARTING, STOPPING THE ENGINE: vehicle with key STARTING, STOPPING THE ENGINE: vehicle with card.

Running out of fuel on diesel versions

Vehicles with key/remote control

- Set the ignition key to “On” position M IGNITION SWITCH: vehicle with key and wait a few minutes before starting to enable the fuel circuit to be primed;

- turn the key to position D. If the engine does not start, repeat the procedure;

- if the engine does not start after several attempts, please contact an authorised dealer.

Vehicles with card

With the card in the passenger compartment, press the start button 4 without pressing any of the pedals. Wait a few minutes before starting.

This will enable the fuel circuit to be primed. If the engine does not start, repeat the procedure.

If the engine does not start after several attempts, please contact an authorised dealer.

No modifications whatsoever are permitted on any part of the fuel supply system (electronic units, wiring, fuel circuit, injectors, protective covers, etc.) as this may be dangerous (unless undertaken by qualified Network personnel).

Persistent fuel odour

If you notice a persistent fuel odour you should:

- stop the vehicle as soon as traffic conditions allow and switch off the ignition;

- switch on the hazard warning lights and ask your passengers to leave the vehicle and stay clear of the traffic;

- contact an approved Dealer.
