INTERIOR LIGHTING: changing bulbs

  • 1
  • 2
  • 3
  • 4
  • 5

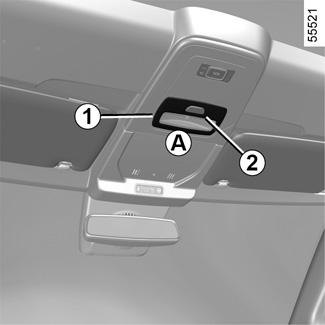

Front ceiling light 1

- Unclip the lens 2 (using a tool such as a flat screwdriver), positioned at A;

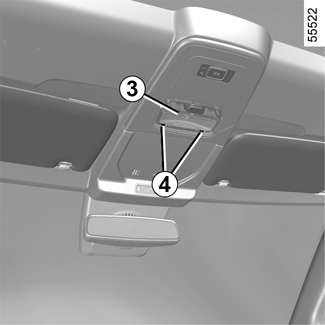

- unclip and release the bulb holder 3 using the tabs 4;

- remove the bulb concerned.

Type of bulb 5: W5W.

Refitting

- Clip the lens 2 on to the bulb holder 3;

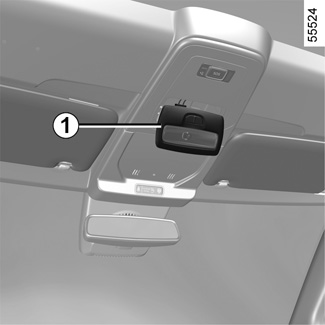

- clip in the interior lights 1 until the unit clicks;

- ensure that the interior lights are properly positioned and locked into place.

The bulbs are under pressure and can break when replaced.

Risk of injury.

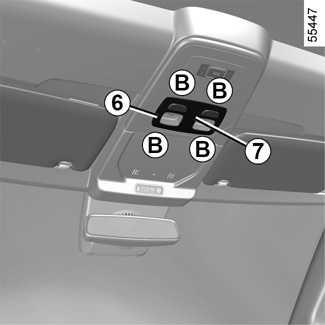

Front map reading lights 6

(depending on the vehicle)

- Unclip the lens 7 (using a tool such as a flat screwdriver), positioned at B;

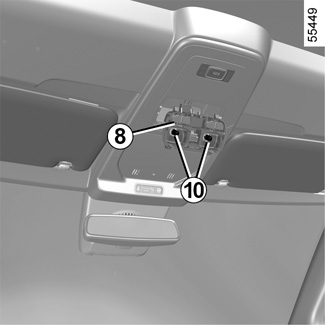

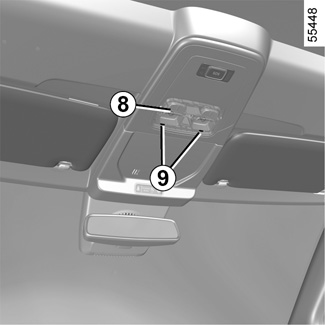

- unclip and release the bulb holder 8 using the tabs 9;

- remove the bulb concerned.

Type of bulb 10: W5W.

Refitting

- Clip the lens 7 on to the bulb holder 8;

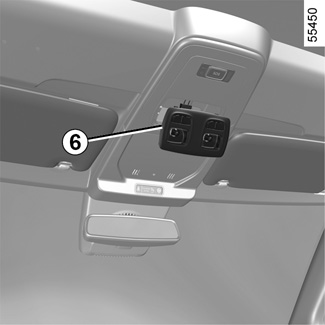

- clip in the reading spots block 6 until the unit clicks;

- make sure that the reading spots block is correctly positioned and locked into place.

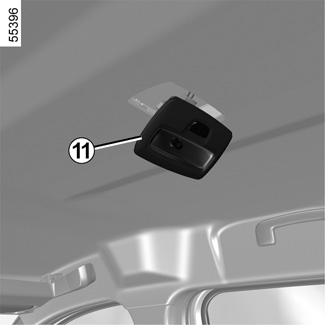

Rear reading spot 11

(depending on the vehicle)

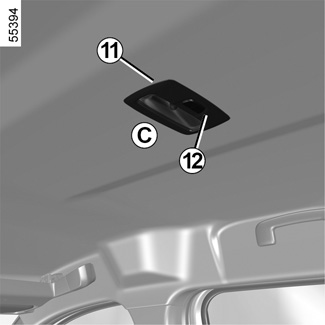

- Unclip the lens 12 (using a tool such as a flat screwdriver), positioned at C;

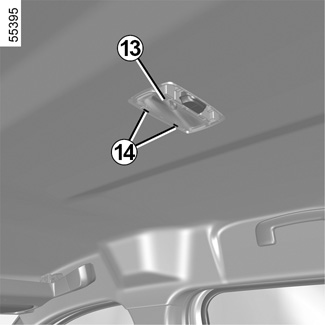

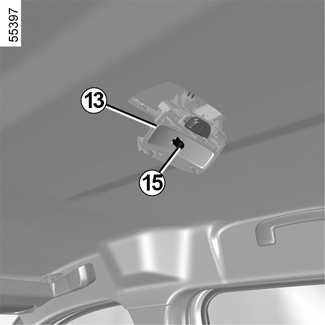

- unclip and release the bulb holder 13 using the tabs 14;

- remove the bulb concerned.

Type of bulb 15: W5W.

Refitting

- Clip the lens 12 on to the bulb holder 13;

- clip in the reading spots block 11 until the unit clicks;

- make sure that the reading spots block is correctly positioned and locked into place.

The bulbs are under pressure and can break when replaced.

Risk of injury.

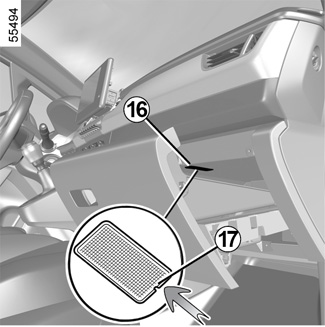

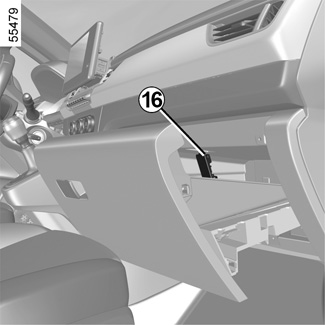

Glove box light 16

(depending on the vehicle)

Unclip light 16 using a flat-blade screwdriver or similar) by pressing on the tab 17 to move the light towards the inside of the unit.

Remove the bulb concerned.

Bulb type: W5W.

The bulbs are under pressure and can break when replaced.

Risk of injury.

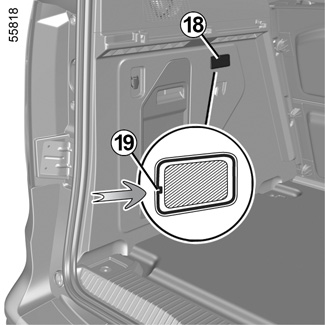

Luggage compartment light 18

Unclip light 18 (using a flat-blade screwdriver or similar), by pressing on tab 19 to move the light towards the inside of the luggage compartment.

Remove the bulb concerned.

Type of bulb: W5W.

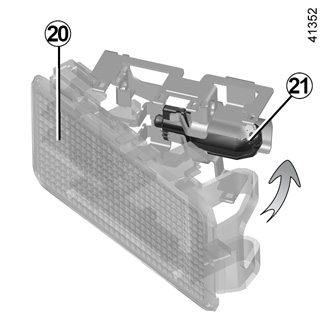

Release the lens 20 and access the bulb 21.

Type of bulb 21: W5W.

The bulbs are under pressure and can break when replaced.

Risk of injury.

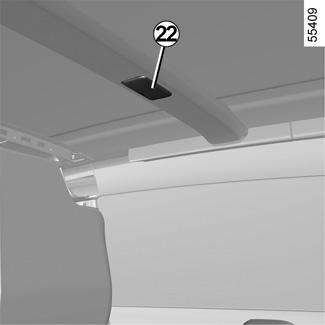

Halogen rear light 22

Unclip the ceiling light diffuser using a flat blade screwdriver or similar.

Pull the bulb to remove it from its housing.

Bulb type: W6W

Replace the bulb and refit the lens.

LED rear light 22

Consult an approved dealer.
