MULTIMEDIA EQUIPMENT

  • 1
  • 2
  • 3
  • 4
  • 5

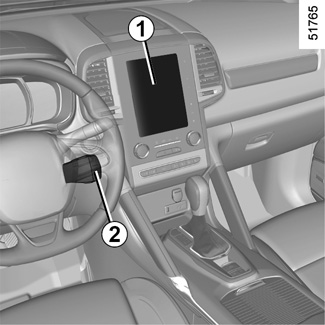

Multimedia systems

1 Multimedia screen;

2 Steering column controls;

3 Steering wheel controls;

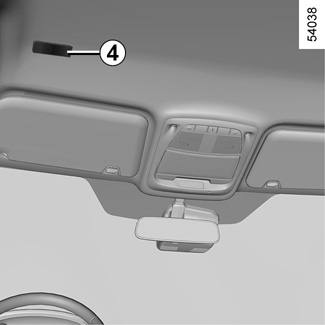

4 Microphone.

Hands-free telephone integrated control

For equipped vehicles, use the steering wheel controls 3.

Refer to the equipment instructions for information on how to operate this equipment.

Using the telephone

We remind you of the need to conform to the legislation in force concerning the use of such equipment.

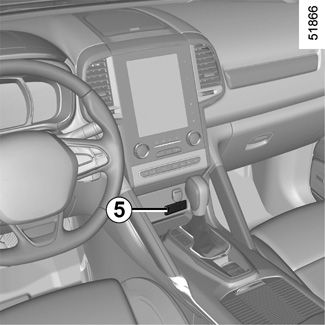

Multimedia sockets 5

You can use sockets USB to access the multimedia content of your accessories and the system update (please refer to the equipment instructions).

The various sources can be selected from the multifunction screen and from the steering column controls.

The sockets USB can also recharge accessories with a maximum power rating of 10.5 Watts (voltage: 5V) per socket, which have been approved by our Technical Department.

The JACK socket enables the radio to be used with an auxiliary cable.

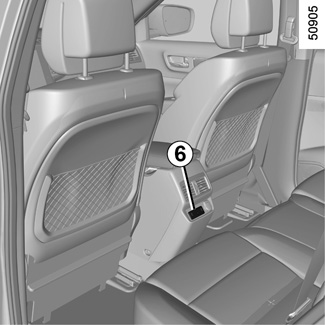

Multimedia sockets 6

Sockets USB can only recharge accessories with a maximum power rating of 10.5 Watts (voltage: 5V) per socket, which have been approved by our Technical Department.

The JACK socket enables the radio to be used with an auxiliary cable.
