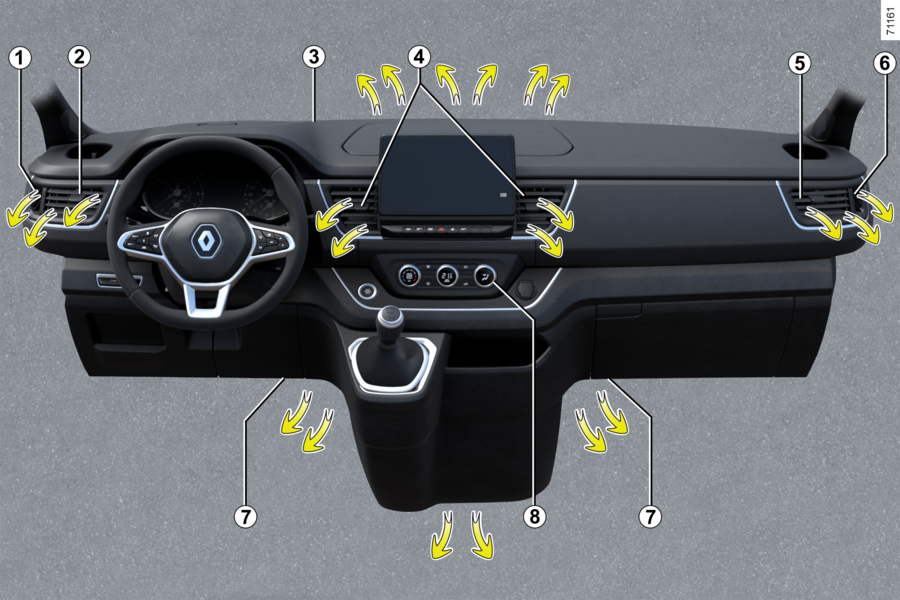

AIR VENTS, AIR OUTLETS

  • 1
  • 2
  • 3
  • 4
  • 5

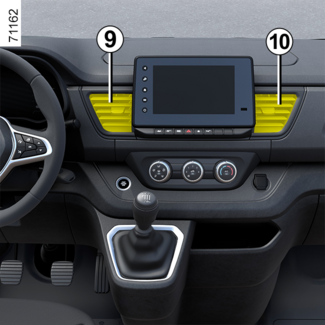

Centre air vents.

Air flow

To close the left-hand central air vent, slide the tab 9 fully to the left.

To close the right-hand central air vent, slide the tab 10 fully to the right.

Air flow direction

To direct the air flow, swivel the side air vent 9 or 10.

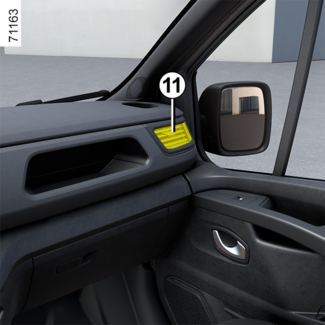

Side air vents

Air flow

To close the left-hand side air vent, slide the tab 11 fully to the right.

To close the right-hand side air vent, slide the tab 11 fully to the left.

Air flow direction

To direct the air flow, swivel side air vent 11.

To remove bad odours from your vehicles, only use the systems designed for this purpose. Consult an approved Dealer.

Do not add anything to the vehicle’s ventilation circuit (for example, to remove bad odours).

There is a risk of damage or of fire.
