Seat adjustments

To move forwards or backwards

Lift handle 1 to release. Release the handle once the seat is in the correct position and ensure that the seat is locked.

To adjust the height of the seat base

Lower or pull lever 3 as many times as is necessary to raise or lower the seat base.

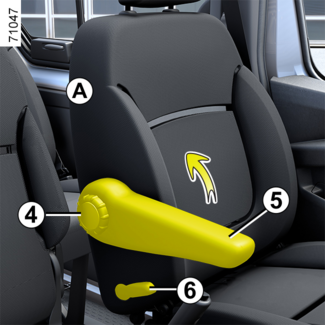

Lumbar adjustment

Turn control knob 4 to increase or decrease support.

To tilt the seatback

Move lever 6.

Front armrests 5

Depending on the vehicle, the front armrests 5 can be adjusted.

To adjust the armrest upwards

Lift armrest to the desired position.

To adjust the armrest downwards

Lift the armrest to the storage position along the seat back, then lower it.

To store away the armrest

Lift the armrest to the storage position A. Check that it is correctly locked.

Heated seats

With the ignition on, press switch 2. The integrated indicator comes on.

The system, which has a thermostat, decides whether or not the heating is needed.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

We would advise you not to recline the seatbacks too far to ensure that the effectiveness of the seat belts is not reduced.

Nothing should be placed on the floor (area in front of driver) as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.

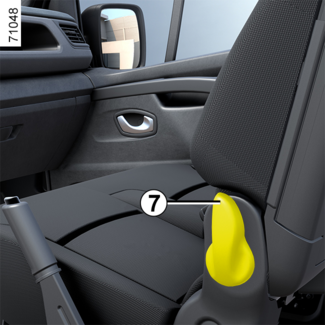

Central passenger seat table formation

Make sure that nothing prevents the seat from moving.

- hold the seatback by the top to guide it downwards, and simultaneously activate control 7 and fold the seatback forwards;

- press on the back of the seatback to lock it in place. Make sure you lock the seatback properly.

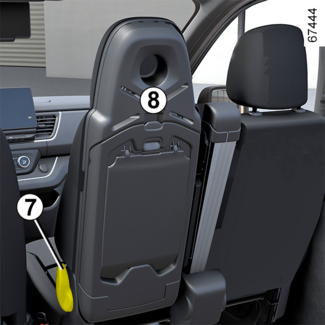

To reposition the central passenger seat

Make sure that nothing prevents the seat from moving.

- Activate control 7 to unlock the seatback;

- Lift the seat back;

- Make sure the seat is correctly locked in position.

After making adjustments, make sure that the seatbacks are correctly locked in place.

For your safety, attach any transported objects when the seat is in the table position.

When the front seatback is in the table position, you must deactivate the front passenger airbag CHILD SAFETY: deactivating, activating airbag front passenger.

Risk of serious injury caused by items resting on the seatback table which may be dislodged when the airbagairbag is deployed.

The label (on the dashboard) and the markings (on the windscreen) remind you of these instructions.
