Passenger compartment storage, fittings

Front storage compartments

WARNING
Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may be projected onto passengers during sudden turning, braking or in the event of an accident.
WARNING
Nothing should be placed on the floor (area in front of the driver) as these objects may slide under the pedals during sudden braking manoeuvres, thus obstructing their use.

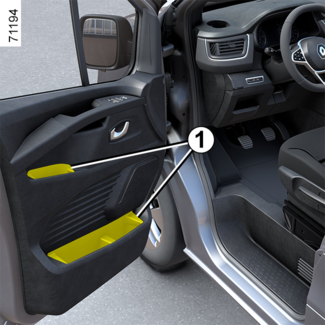

Front door storage compartments 1

WARNING
Always close the seat base when driving:
  • there is a risk of injury when braking suddenly or in the event of an accident;
  • there is a risk of objects being hurled through the passenger compartment.

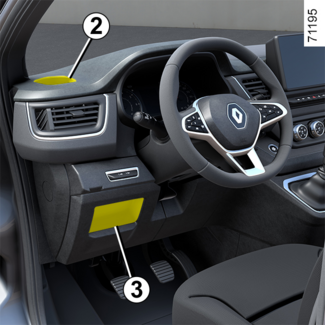

Cup holder 2 and storage compartment open 3

This location can be used as a cup holder, a storage compartment or as a receptacle to fit the ashtray.

Passenger cup holder 2

Tip
Do not place your card in the storage compartment 2 as it may not be detected.

Right-hand driving position storage compartments 2 and 3

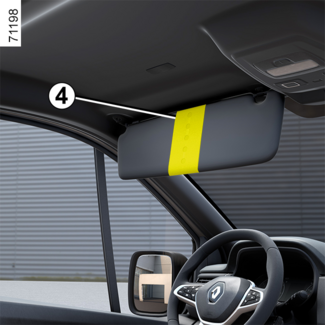

Sun blind storage compartment 4

This can be used for storing motorway tickets, cards, etc.

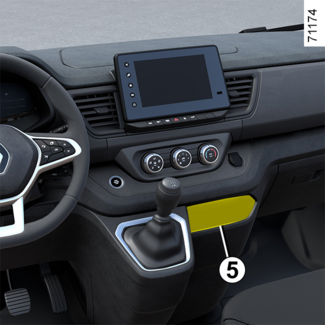

Centre console storage compartment/Induction charging zone 5

For more information on the induction charging zone, please refer to the multimedia instructions.
When charging a phone in the inductive charging zone, an LED will light up in front of the charging zone. On vehicles equipped with a multimedia system or radio, the charging status is displayed on the screen. Consult the vehicle's multimedia user manual.
Tip
Objects left in the induction charging area 5 may overheat. You are advised to place them in the areas provided for this purpose (storage compartment, sun visor compartment etc.).
Tip
It is essential not to leave any objects (start-up card, USB drive, SD card, credit card, jewellery, keys, coins, etc.) 5 in the induction charging zone when charging your phone. Remove any magnetic cards or credit cards from the phone case before positioning your telephone in the induction charging area 5.
WARNING
Using a telephone and/or multimedia tablet
We remind you of the need to conform to the legislation in force concerning the use of such equipment.

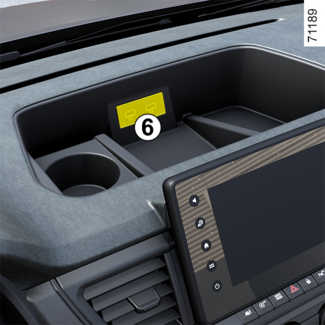

Storage compartment 6

It can hold payment cards, money, A4-sized documents etc.

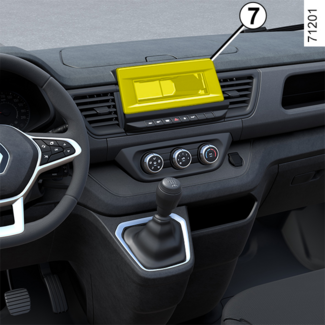

Radio location 7

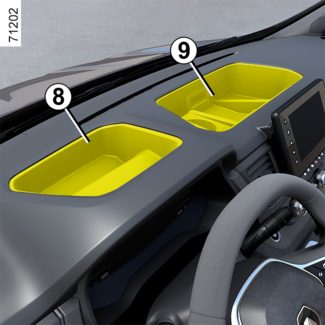

Dashboard storage compartment 8 and 9

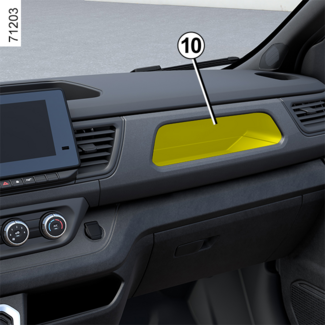

Dashboard storage compartment 10

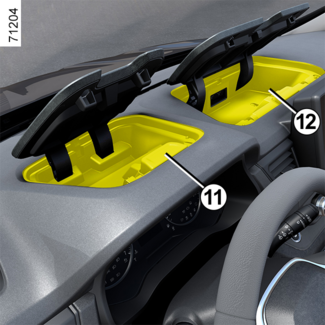

Dashboard passenger storage compartment 11 and 12

Additional storage compartments

WARNING
Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may be projected onto passengers during sudden turning, braking or in the event of an accident.

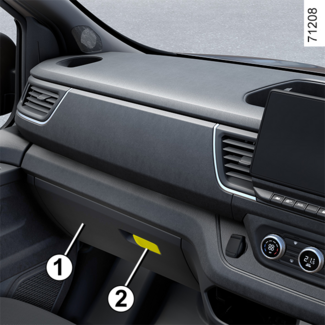

Glovebox 1

To open, pull control 2.
Depending on the vehicle, the glove box may have ventilation and air conditioning (one 1.5 litre bottle can be stored there).
Tip
Maximum weight allowed in the glovebox 1: 4 kg evenly distributed.

Right-hand driving position glovebox

Passenger storage drawer 3

To open, press control 4.
Depending on the vehicle, the glove box may have ventilation and air conditioning (one 1.5 litre bottle can be stored there).
Tip
Maximum permitted load in the storage drawer 3: 4 kg, evenly distributed.

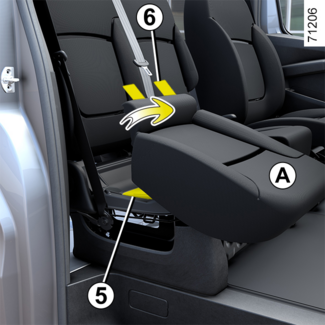

Storage compartment 5 under the front seat base

To access this, pull the tabs 6 and tilt the seat base A forwards.

Seatback in table position

(van version only)
For further information, please refer to the FRONT SEATS section.
On equipped vehicles, fold down the centre seatback by lifting the control 11. On the back of the centre seat you will find:
  • a cup holder 7;
  • a storage area 9;
  • a shelf 10.
WARNING
It is forbidden to sit in the centre seat if its seatback is folded down.
Storage compartment 9
(van version only)
For further information, please refer to the FRONT SEATS section.

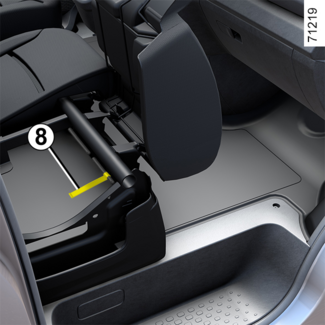

To open, press control 8.
Inside, the strap 12 can be used to keep an object in place.
With the storage compartment 9 closed, the opening 12 allows you to leave a charging cable connected to an accessories socket.

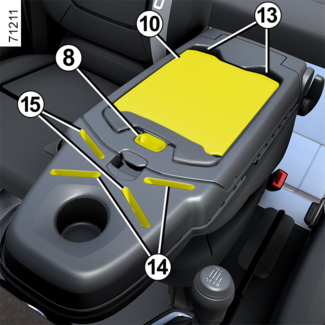

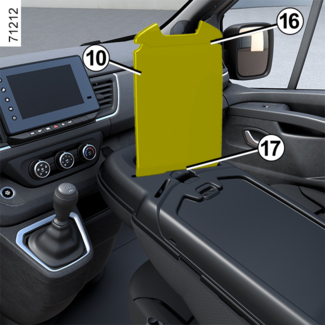

Shelf 10
(van version only)
For further information, please refer to the FRONT SEATS section.
To unlock the shelf, press control 8.
To fit the shelf, insert the end pieces 13 of the shelf into slot 14 or 15.
WARNING
Ensure that no hard, heavy or pointed objects are placed in the open storage compartments in such a way that they may fall on any passengers during sudden turning, braking or in the event of an accident.
You can attach using the document clamp 16.
To remove the shelf, press the control 17.
Note: make sure to close the shelf and remove any item from the cup holder before raising the centre seatback. Check that the back of the centre seat is properly locked.

Rear storage compartments

WARNING
Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may be projected onto passengers during sudden turning, braking or in the event of an accident.

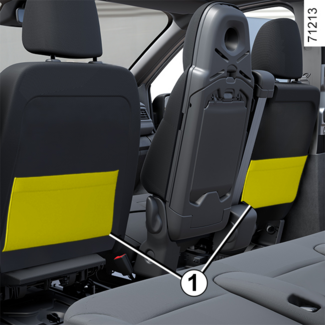

Rear seat storage pockets 1

WARNING
When turning corners, accelerating or braking, ensure that the receptacle being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.

Grab handle 2

This offers support and can be held when the vehicle is moving.
Tip
Do not use the grab handle 2 to get in or out of the vehicle.

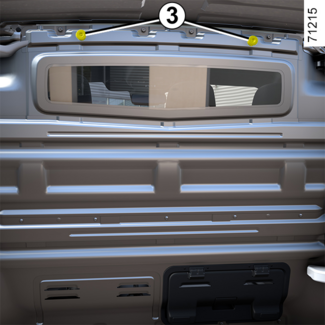

Clothes hooks 3

Depending on the vehicle, hooks may be placed in the partition in the loading space.
For safety reasons, this hook may only be used to hang clothes.

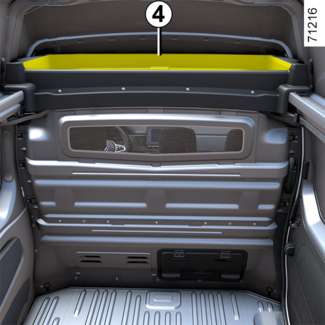

Rear load area upper storage compartment 4

Reserved for the transport of objects only.
The total weight of the rear load area storage compartment must not exceed 35 kg, evenly distributed.
WARNING
Do not hang any heavy and/or sharp objects which may fall while you are driving.
Risk of injury.

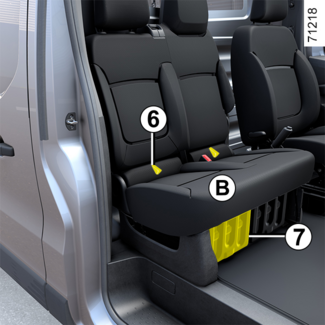

Recess 5 and flap 7

Depending on the length of the objects being transported in the rear load area, you can use recess 5.
Open the flap 7 held in place by magnets.
Use the flap 7 to extend the load length:
  • pull the tab 6 to raise the seat belt B;
  • move the flap 7 towards the interior of the seat by pulling the tab 8.
WARNING
It is prohibited to use front side passenger seat while the flap 7 is open.
Risk of serious injury when braking sharply or in an impact.
WARNING
Ensure that no hard, heavy or pointed objects are placed in the "open" storage compartments in such a way that they may be projected onto passengers during sudden turning, braking or in the event of an accident.
