AIR CONDITIONING: information and operating instructions

  • 1
  • 2
  • 3
  • 4
  • 5

Advice on use

In some situations, (air conditioning off, air recirculation activated, ventilation speed at zero or low, etc.) you may notice that condensation starts to form on the windows and windscreen.

If there is condensation, use the “Clear View” function to remove it, then use the air conditioning in automatic mode to stop it forming again.


Refer to the Maintenance Document for your vehicle for the inspection frequency.


It is normal to notice an increase in energy usage when the air conditioning is operating.

Use the air conditioning system regularly, even in cold weather, running it at least once a month for approximately 5 minutes.

Recommendations to limit energy consumption and maintain the vehicle range

Drive with the air vents open and the windows closed. If the vehicle has been parked in the sun, open the doors for a few moments to let the hot air escape before starting the engine.

It is preferable, before setting off, to use of the programmed air conditioning AIR CONDITIONING: programming.

Operating faults

As a general rule, contact your approved dealer in the event of an operating fault.

- Reduction in de-icing, demisting or air conditioning performance. This may be caused by the passenger compartment filter cartridge becoming clogged.

- No hot or cold air is being produced. Check that the controls are set correctly and that the fuses are sound. Otherwise, switch off the system.

Presence of water under the vehicle

After prolonged use of the air conditioning system, it is normal for water to be present under the vehicle. This is caused by condensation.

Do not open the refrigerant fluid circuit. The fluid may damage eyes or skin.

Refrigerant fluid

The refrigerant circuit (of which some components are hermetically sealed), which may contain fluorinated greenhouse gases.

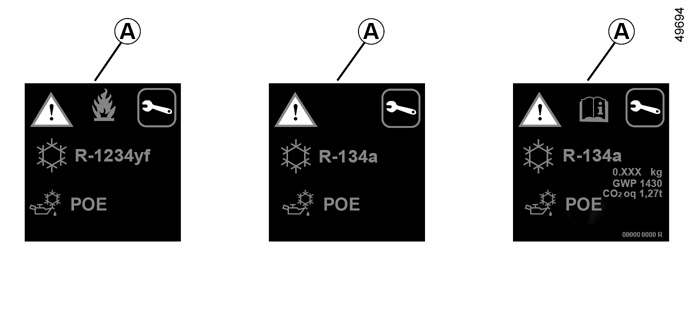

Depending on the vehicle, you will find the following information on label A affixed inside the engine compartment.

The presence and location of the information on the label depends on the vehicle.

Ñ Type of refrigerant fluid

(XXX) Type of oil in the air conditioning circuit

Inflammable product

Consult the driver’s handbook


(1) Quantity of refrigerant fluid present in the vehicle. kg

(2) Global warming potential.

GWP xxxx

(3) Quantity in weight and in CO2 equivalent.

CO2 eq x.xx t

Additional information

Depending on label and depending on the type of refrigerant:

Refrigerant fluid R-1234yf

- (1) 1,035 kg;

- (2) GWP 4;

- (3) 0.004 t.

Do not open the refrigerant circuit. The fluid may damage eyes or skin.

Before carrying out any action in the engine compartment, you must switch off the ignition STARTING, STOPPING THE ENGINE.
