ELECTRONIC PARKING BRAKE
Applying the electronic parking brake
With the vehicle stationary, the electronic parking brake can be used to immobilise the vehicle:

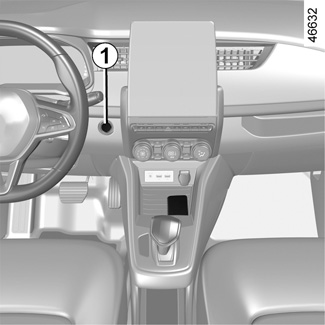

- by pressing the engine start/stop button 1;
- when the driver’s seat belt is unfastened;
- when the driver’s door is opened;
- when the engine is stopped.

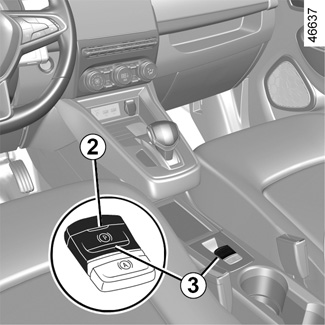

To confirm that the electronic parking brake is applied, the message “Parking Brake ON” and warning light } on the instrument panel and warning light 2 on the switch 3 light up.
After the engine is switched off, indicator light 2 goes out several minutes after the assisted parking brake has been applied and indicator light } goes out when the vehicle is locked.
Before leaving the vehicle, check that the electronic parking brake is fully applied. Warning light 2 on switch 3 and warning light } on the instrument panel light up to show that the parking brake is applied but go out when the doors are locked.
Assisted operation (continued)
Note: in some situations (electronic parking brake failure, manual release of the parking brake, etc.), a beep sounds and the message “WARNING: Apply Parking Brake” appears on the instrument panel to warn you that the electronic parking brake has been released.
- with the engine running: when the driver’s door is opened;
- with the engine off: when a front door is opened.
In this case, pull and release switch 3 to apply the assisted parking brake.
Assisted release of the parking brake
The brake will be released as soon as the vehicle starts and accelerates.
You can apply the electronic parking brake manually.
Manually applying the electronic parking brake
Pull switch 3. Warning light 2 and warning light } on the instrument panel light up.
Manually releasing the electronic parking brake

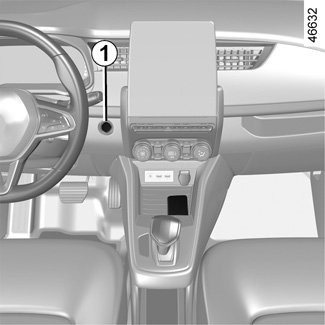

Press switch 1 without pressing the pedals to switch the ignition on. Press the brake pedal then press switch 3: indicator light 2 on the switch and indicator light } displayed on the instrument panel go out.
Before leaving the vehicle, check that the electronic parking brake is fully applied. Warning light 2 on switch 3 and warning light } on the instrument panel illuminate to show that the parking brake is applied but switch off when the doors are locked.
To apply the electronic parking brake manually (when stopping at a red light, or stopping when the engine is running, etc.): pull and release the switch 3. The brake is released as soon as the vehicle is started up again.
When parking on a slope, for example, pull switch 3 for a few seconds to achieve maximum braking.
To park, without applying the electronic parking brake (if there is a risk of freezing, for example):
- stop the engine by pressing the engine Start/Stop button 1;
- engage any gear: the drive wheels will be mechanically locked by the driveshaft;
- manually release the electronic parking brake.
For safety reasons, automatic release is deactivated when the driver’s door is open or not shut properly and the engine is running (in order to prevent the vehicle from moving without the driver). The “Release Parking Brake Manually” message appears on the instrument panel when the driver depresses the accelerator.
- If there is a fault, the © warning light illuminates on the instrument panel accompanied by the “Check Parking Brake” message and, in some cases, the } warning light. Contact your approved Dealer straight away.
- If there is an assisted parking brake fault, the warning light ® comes on, along with the message “WARNING: Braking System”, a beep and, in some cases, the warning light }.
This means that you must stop as soon as traffic conditions allow.
If the “WARNING: Electric System” or Check Battery message appears, manually activate the assisted parking brake by pulling switch 3 before stopping the engine.
Risk of loss of immobilisation of the vehicle.
Call an approved Dealer.
If no lights or sounds are apparent, this indicates a fault in the instrument panel. This indicates that it is essential to stop immediately (as soon as traffic conditions allow). Ensure that the vehicle is correctly immobilised and contact an approved Dealer.
Never leave your vehicle without moving the selector lever to position N, applying the handbrake and switching off the engine. This is because when the vehicle is stationary with the engine running and a gear engaged, the vehicle may begin to move if you accelerate.
There is a risk of accidents.
