Air vents: air outlets

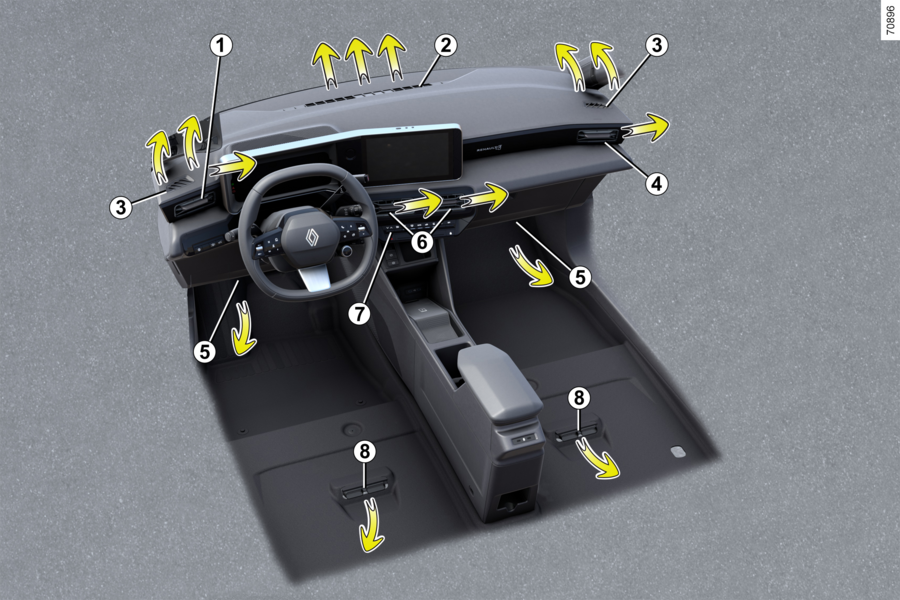

Air outlets

1.
Driver’s position air vents.
2.
Windscreen demisting vent.
3.
Side window demister outlet.
4.
Passenger air vents.
5.
Footwell heater outlets for front passengers.
6.
Centre air vents.
7.
Control panel
8.
Footwell heater outlets for rear passengers.

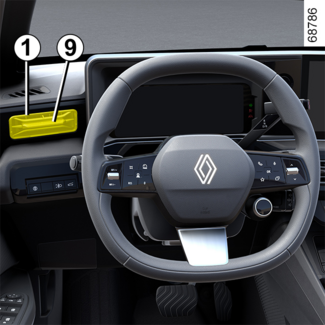

Driver's position air vent 1

Direction
To direct the air flow, turn the air vent 1 using the tab 9.
To close: move the tab 9 away from the steering wheel beyond the point of resistance.
To open: move the tab 9 towards the steering wheel.

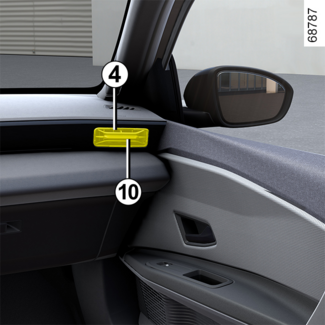

Passenger air vent 4

Direction
To direct the air flow, turn the air vent 4 using the tab 10.
To close: move the cursor 10 towards the outside of the front panel, beyond the point of resistance.
To open: move the tab 10 towards the inside of the front panel.

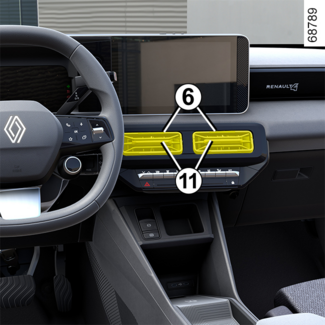

Centre air vents 6

Direction
To direct the air flow, turn the air vents 6 using the tabs 11.
To close: move the tab 11 towards the inside of the front panel.
To open: move the tab 11 towards the outside of the front panel, beyond the point of resistance.
Tip
Do not attach any objects to the air vents (e.g. telephone mounting).
Risk of damage.

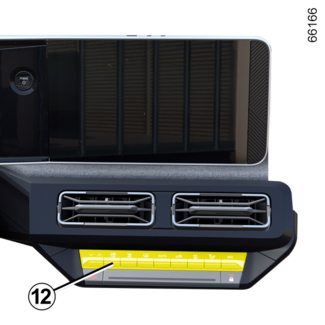

Air flow

To adjust the air flow from the air vents 1, 4 and 6, press and raise the control 12 to the level required.
To remove bad odours from your vehicles, only use the systems designed for this purpose. Consult an approved Dealer.
WARNING
Do not add anything to the vehicle’s ventilation circuit (for example, to remove bad odours).
There is a risk of damage or of fire.
